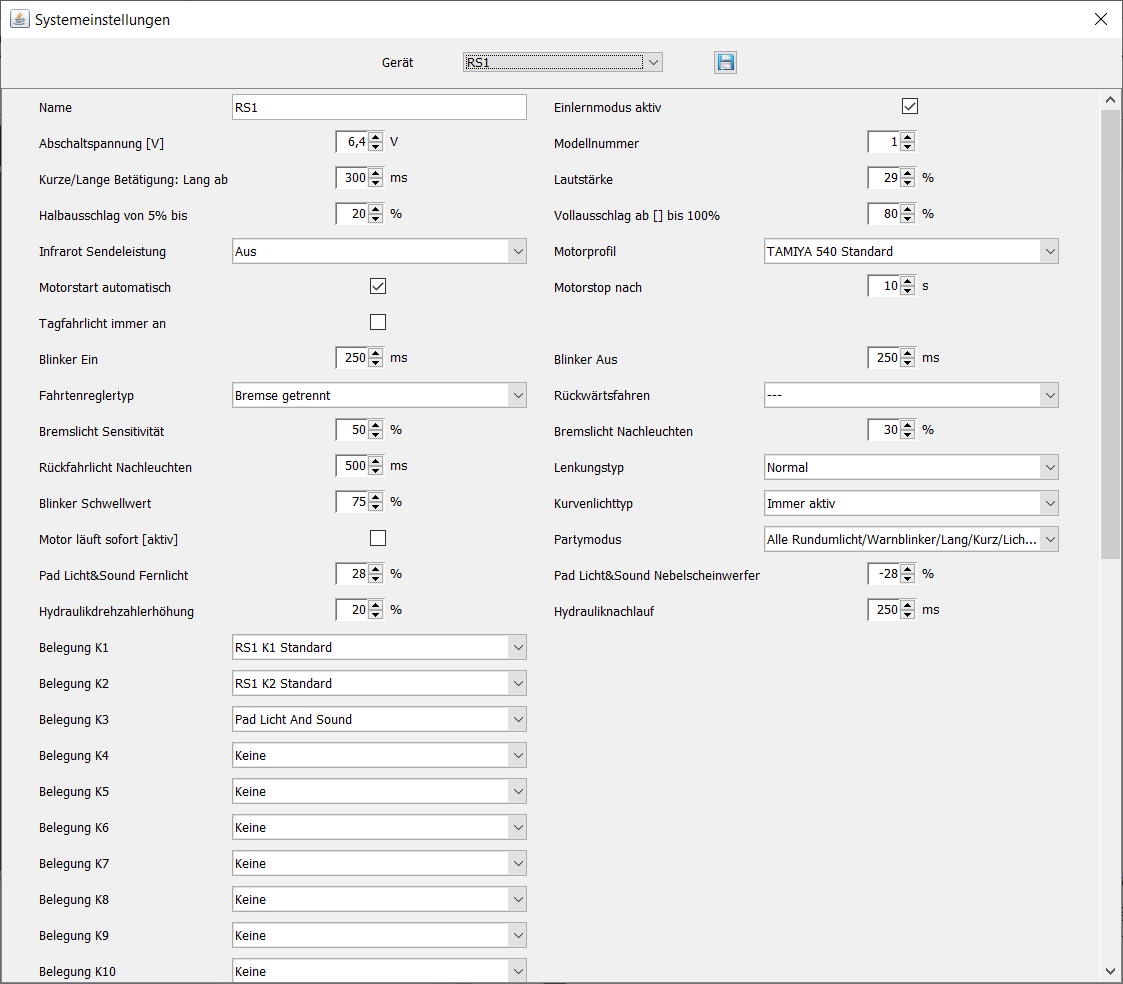

System Settings

Basic settings that significantly influence the behavior of the model:


  • Name: Designation of the module in the overview, important when using multiple KLB modules
  • Learning mode active: Manual learning procedure can be deactivated here
  • Cut-off voltage: 6.4 V for 7.2 V NiMh/NiCd batteries, 9.6 V for 3S LiPo
  • Model number: Switch between three models
  • Short/Long actuation: Defines from when a button press is considered long
  • Volume: Starting volume of the sound, automatically adjusts to potentiometer or stick travel
  • Half deflection and full deflection: Threshold values for deflections
  • Infrared transmission power: Setting depending on the distance of the diodes (1 = small, 3 = large)
  • Motor profile: Influences starting behavior and cruise control
  • Motor start automatic: Motor starts with slight forward movement of the stick
  • Motor stop after: Time in seconds until motor stop due to inactivity
  • Daytime running light always on: Switches on daytime running light before parking light
  • Turn signal On/Off: Pulse duration for blink speed
  • Speed controller type: Currently only "Brake separate" supported
  • Reverse driving: Coupling of hazard lights and turn signals
  • Brake light sensitivity and afterglow
  • Reverse light afterglow
  • Steering type: Automatic or manual turn signal operation
  • Turn signal threshold: From when turn signals are switched on or reset
  • Cornering light type: Always on or only with driving light
  • Motor runs immediately: Motor starts immediately after switching on or manually
  • Party mode: Defines functions on button press on the control pad
  • Pad light & sound: Fine tuning of the control pad channels
  • Hydraulic speed increase and after-run: Settings for hydraulic channel

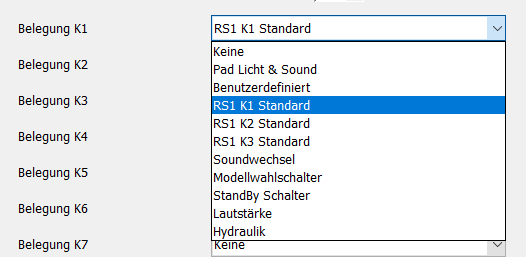

Assignment K1 – K32


  • None: Channel is not used
  • Pad light & sound: Use of the control pad on this channel

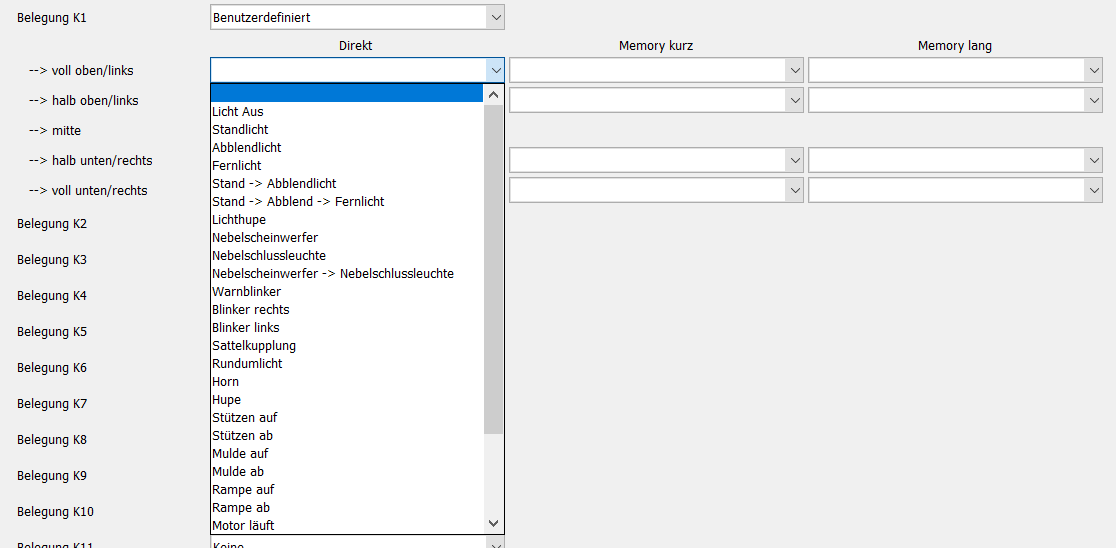

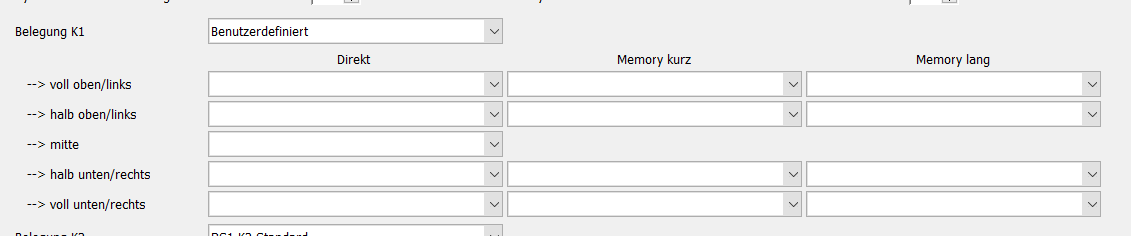

  • User-defined: Custom assignment for half/full, short/long deflections as memory or direct function

Possible Settings



Additional Functions

  • Sound change: Switch between sounds by button press
  • Model selector switch: Switch between models (depending on system settings)
  • StandBy switch: StandBy mode analogous to the switch on RS1
  • Volume: Direct volume control via remote control
  • Hydraulics: Triggers speed increase of the motor sound
