ControlPanel¶
Menu Icons¶
- Back to main overview
- Reconnect: Search for new modules
- Reload module: Discards all current settings in the module view
- Open settings/project
- Save settings/project: Overwrites loaded settings from PC
- Save as: Saves under a new filename
- Write all settings to module
Model Functions¶
Here you can toggle functions in the model:
Motor Control, Battery Voltage and BEC Current¶
- Motor start/stop
- Activate motor brake
- Activate load
- Battery voltage
- BEC current
Icons for Assistants¶

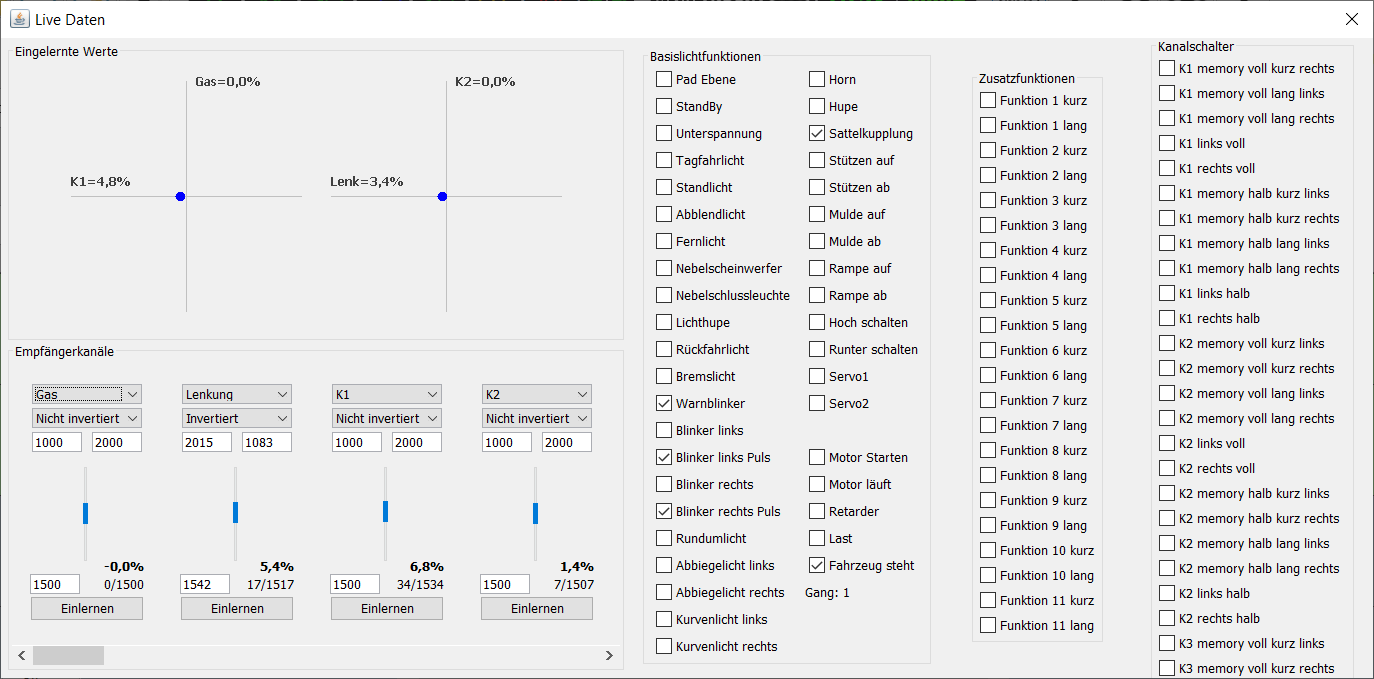

- Open live data
- Show device information
- Open system settings
- Show outputs
- Start live update
